MT PNEUMATIC SNAP BUTTON ATTACHING MACHINE

Request information

Mechanical start pneumatic applicator complete with hand guard device according to CE standards. Characterised by a pedal control that starts the pneumatic pressing cycle.
Cylinder diam.80 as standard supply (cylinder force 350kg/8bar).
Manual loading of items to be applied. Bed height 85 cm. Button-holder trays as standard supply.

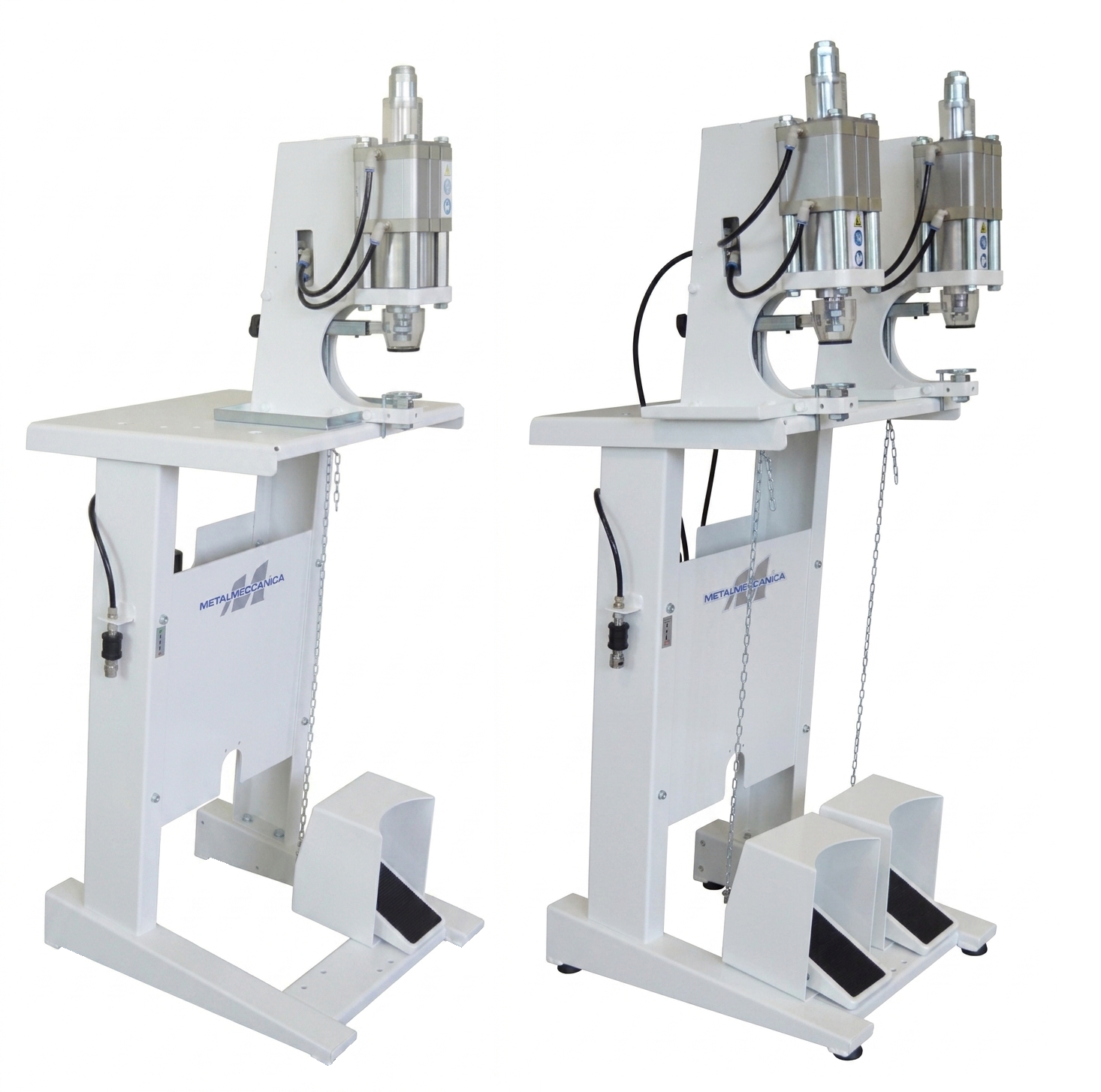

Two versions : MT10 one head ; MT20 two heads (for one operator)
Available also in the version MT/SL with usable working depth of 160mm.

OPTIONALS:
  •  red led pointer (point or cross)
  •  die-holder panel
  •  guide for adjustement snaps distance
  •  vacuum kit

Images

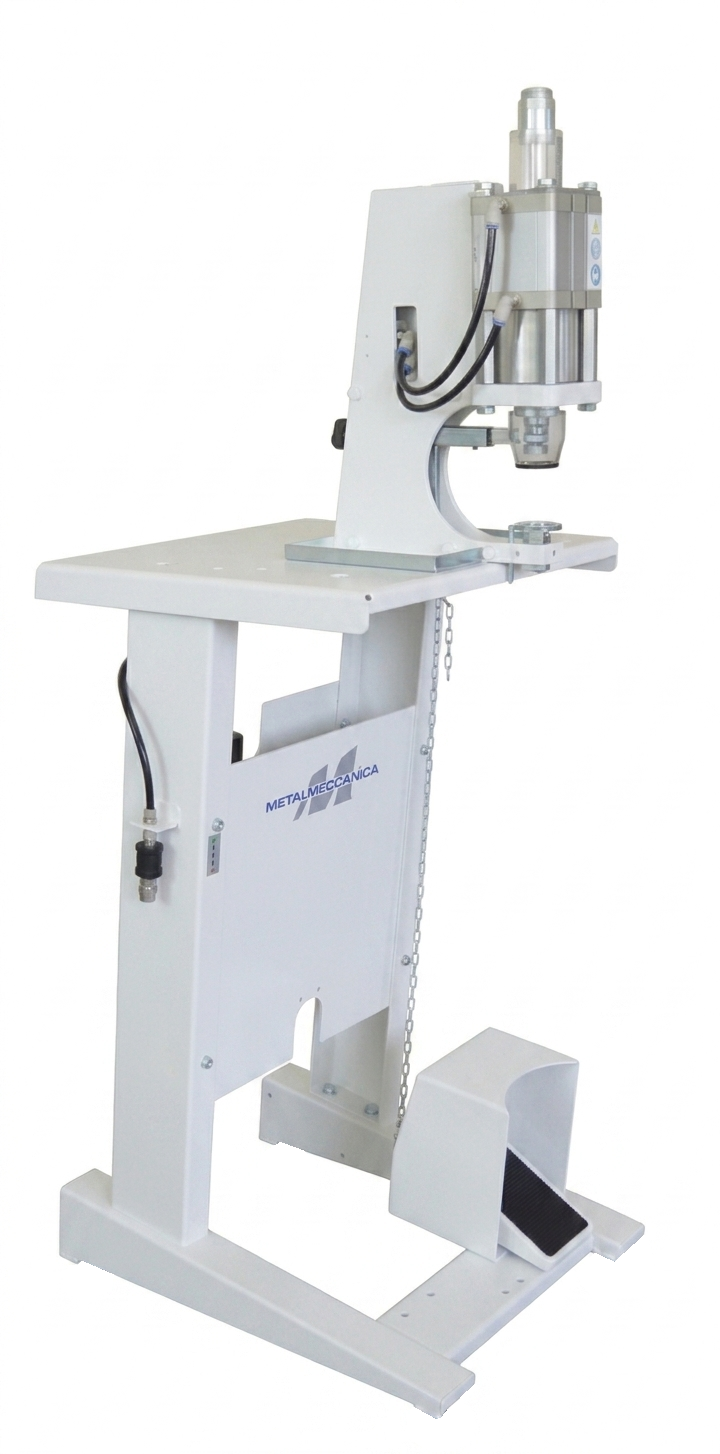

  • MT10

    MT10

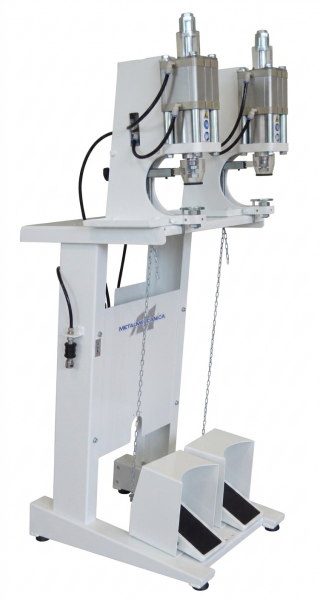

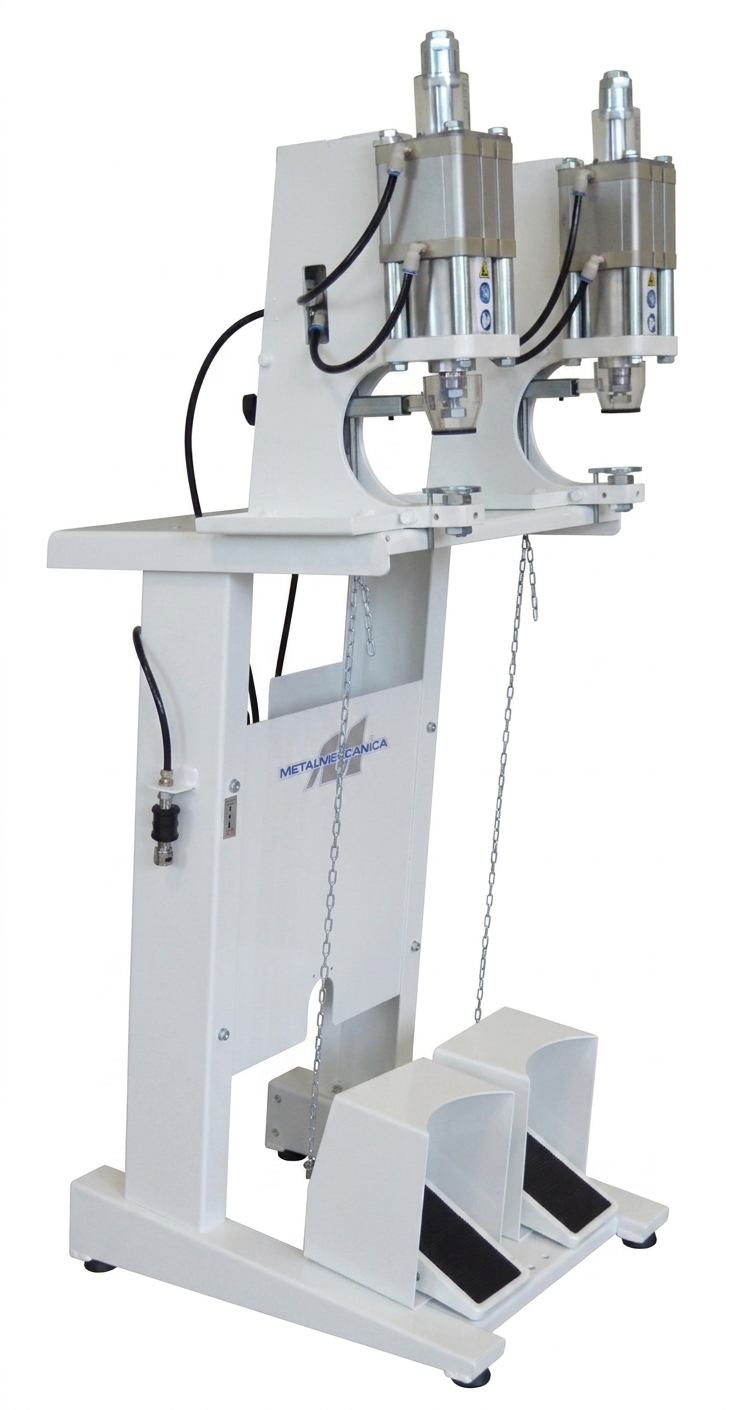

  • MT20

    MT20

  • MT10/SL

    MT10/SL

  • MT20/SL

    MT20/SL

  • RED POINT DEVICE FOR POSITIONING SNAPS

    RED POINT DEVICE FOR POSITIONING SNAPS

  • RED CROSS DEVICE FOR POSITIONING SNAPS

    RED CROSS DEVICE FOR POSITIONING SNAPS

  • Reference guide

    Reference guide

  • PANEL FOR MATRICES

    PANEL FOR MATRICES

  • TIMER FOR MT

    TIMER FOR MT

  • CUTTING DIE

    CUTTING DIE
